4.25 Gb/s BERT (B040)

  • Optical transceivers test

  • TOSA / ROSA test

  • Manufacturing automation

Features

  • 10 standards multi-rate BERT between 125Mb/s and 4.25Gb/s,

  • OC-3/12/48, Fast Ethernet/Gigabit, 1/2/4 Fiber Channel, InfiniBand, ESCON

  • PRBS 27-1, 223-1 and 231-1., K28.5 pattern or clock generation

  • Error detection with internal integrated CDR

  • Trigger: data rate divided by n (n = 2, 4, 8, 16, 32)

  • Built in accurate(¡¾ 1.5ppm) and stable internal clocks(¡¾ 20ppm),

  • Optional tunable clock for Video and wireless transceiver application

  • Powered by USB only

  • Connected through USB 2.0 and controlled by intuitive GUI software

  • Easy-to-use and cost-effective solutions

  • Windows 2000/XP/Vista/Window7

  • World¡¯s smallest BERT (WxHxD:10cm x 9cm x 3cm)

 7 Gb/s BERT (B070)

  • Optical transceivers test

  • TOSA / ROSA test

  • Video and wireless transceiver

  • Manufacturing automation

Features

  • Multi-rate BERT between 140M to 7Gb/s

  • Wireless application:
    6.144G/4.9152G/3.072G/2.4576/1.2288G/614.4 Mb/s for CPRI, 3.072G/1.536G/0.768Gb/s for OBSAI

  • Video application:
    2.967Gb/s for 3G-SDI(SMPTE424M), 1.485Gb/s for HD-SDI(SMPTE424M), 540Mb/s (DVB ASI)
    143/177/270/360 Mb/s for SD-SDI (SMPTE259M-C)

  • SONET/SDH : OC-3/12/48

  • Gigbit Ethernet application:1.25Gb/s

  • Built in tunable accurate(¡¾ 1.5ppm) and stable internal clocks(¡¾ 20ppm)

  • Powered by USB only

  • Connected through USB 2.0 and controlled by intuitive GUI software

  • Easy-to-use and cost-effective solutions

  • Windows 2000/XP/Vista/Window7

  • World¡¯s smallest BERT (WxHxD:10cm x 9cm x 3cm)

12 Gb/s  BERT (B120)

  • SFP+/XFP test

  • TOSA / ROSA test

  • Manufacturing automation

Features

  • Continuous multi-rate BERT between 8.8G to 12Gb/s

  • Preset mode for standard bit rate with 1 Hz continuous resolution

  • PRBS 27-1, 231-1 and 64-bit user pattern generation

  • Error detection with integrated CDR (No extra CDR required for fiber dispersion test)

  • Built in Tunable accurate(¡¾ 1.5ppm) and stable internal clocks(¡¾ 20ppm)

  • Powered by USB only

  • Connected through USB 2.0 and controlled by intuitive GUI software

  • Easy-to-use and cost-effective solutions

  • Windows 2000/XP/Vista/Window7

  • World¡¯s smallest BERT (WxHxD:10cm x 9cm x 3cm)

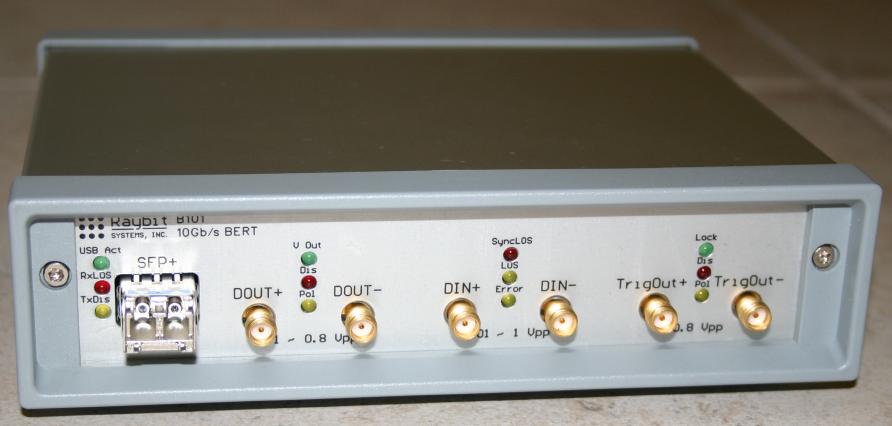

12 Gb/s BERT (B121)

  • SFP+/XFP test

  • TOSA / ROSA test

  • Manufacturing automation

Features

  • Continuous multi-rate BERT between 8.8G to 12Gb/s with SFP+ module Plug-In

  • Preset mode for standard bit rate with 1 Hz continuous resolution

  • PRBS 27-1, 231-1 and 64-bit user pattern generation

  • Variable data output amplitude (0.1 ~ 0.8 Vpp for differential mode)

  • Built in Tunable accurate(¡¾ 1.5ppm) and stable internal clocks(¡¾ 20ppm)

  • Powered by USB only

  • Connected through USB 2.0 and controlled by intuitive GUI software

  • Easy-to-use and cost-effective solutions

  • Windows 2000/XP/Vista/Window7

  • World¡¯s smallest BERT (WxHxD:17cm x 4cm x 14cm)

4 ch x 12 Gb/s  BERT (B124)

  • Optical transceivers test

  • QSFP, CXP, and CFP test

  • Manufacturing automation

Features

  • 4ch, Continuous Multi-rate BERT between 8.8G to 12Gb/s

  • Preset mode for 10 standard bit rate with 1 Hz continuous resolution

  • PRBS 27-1, 231-1 and 64-bit user pattern generation

  • Variable data output amplitude (0.1 ~ 0.8 Vpp for differential mode)

  • Built in Tunable accurate(¡¾ 1.5ppm) and stable internal clocks(¡¾ 20ppm)

  • Connected through USB 2.0 and controlled by intuitive GUI software

  • Easy-to-use and cost-effective solutions

  • Windows 2000/XP/Vista/Window7

  • 3U, 19 inch or 9.5 inch standard sub rack

8 ch x 4.25 Gb/s Automated Test System (ATS0408)

  • Optical transceivers test

  • TOSA / ROSA test

  • Manufacturing automation

Features

  • Fully Automated test systems for 8 channel SFP transceivers with GUI

  • All functional cards are built in standard 19¡± sub rack mount including
    ¡¤  AC power supplier / main processor
    ¡¤
      4.25 Gb/s BERT / reference SFP board
    ¡¤  Optical power meter/attenuator/ splitter
    ¡¤  1x8 optical switches
    ¡¤
      8 channel SFP board (TB0408)

  • Stack up to 64ch by using 8 x 8ch test board

  • Customized full  automation test program is available for SFP with MSA compliant test

  • Digital communication analyzer (DCA) module is available for eye diagram test optionally

  • Optical Spectrum analyzer (OSA) module is available for testing center wavelength/SMSR optionally

  • 10 ~20 sec/ea testing time for SFP manufacturing ( 10 parameters / DDMI )

  • Connected through USB 2.0 and controlled by intuitive GUI software

  • Full automation test with Graphic User interface

  • Easy-to-use and cost-effective solutions

  • Windows 2000/XP/Vista/Window7

  • 3U, 19 inch or 9.5inch standard sub rack

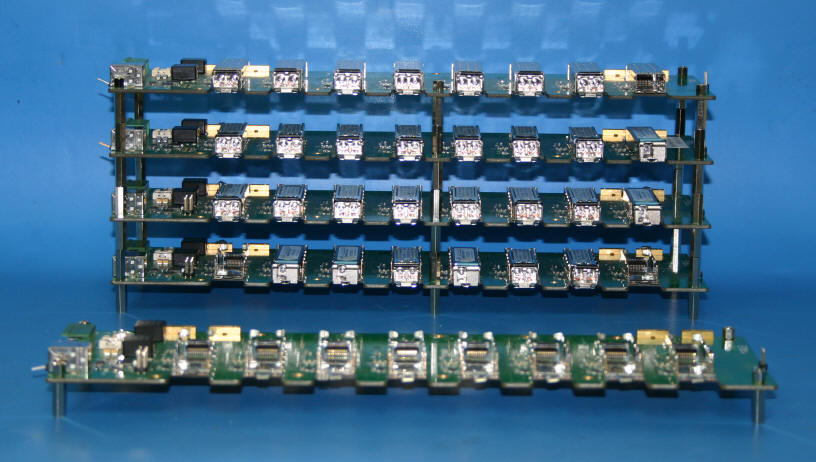

8 ch x 4.25 Gb/s Test Board (TB0408)

¡¡

  • Optical transceivers test

  • TOSA / ROSA test

  • Manufacturing automation

Features

  • 8 multi channel 4.25Gb/s SFP test board with compliant MSA

  • In system programming for micro-processor controller or Digital Diagnostic Monitoring Interface (DDMI)

  • Electrical Power (voltage and current) consumptions test for multi-channels SFP

  • Optical /electrical loop back for each channel

  • Indicators LED for Alarm or test status with intuitive GUI

  • Current limit, auto protection, and auto retry for each channel

  • Power down mode for each SFP module

  • TOSA  and ROSA test with sub-board (option)

  • Current vs optical power test for TOSA test with sub-board (option)

  • Full automation test with Graphic User interface

  • 64ch stack up by using 8 x 8ch test board

  • Easy-to-use and cost-effective solutions

  • Windows 2000/XP/Vista/Window7

  • PCB size (30 cm x 15cm for TB0408)

  • High operating Temperature -40 to 85 ¨¬C (PCB:-40 to 160 ¨¬C) for Burning test
